Description
✪ SM-76 Arca Swiss Saddle, capable of supporting heavy equipment other than cameras to be mounted directly on Arca-Swiss standard tripod.
✪ T6061 Aluminum main body material, elaborately CNC machined with Type-III hard-anodized finish ensures it's resistant to corrosion and abrasion; Ideal to work outdoors under extremely harsh environment.
✪ Base of the saddle is Arca standard QR plate to be mounted on Arca standard ballhead directly; Safety stop screws avoid dropping from the ballhead by powerful shock. 1/4" and 3/8" mounting holes work with tripods without Arca dovetail structure.
✪ Double-headed T-shaped screw structure at the base, the center position will stay in place when adjusting the width of the base so as to ensure the precision of the equipment.
✪ Rubber pads on the inner side of the saddle increase friction with the loaded equipment and provide protection from scratches after powerful shock.

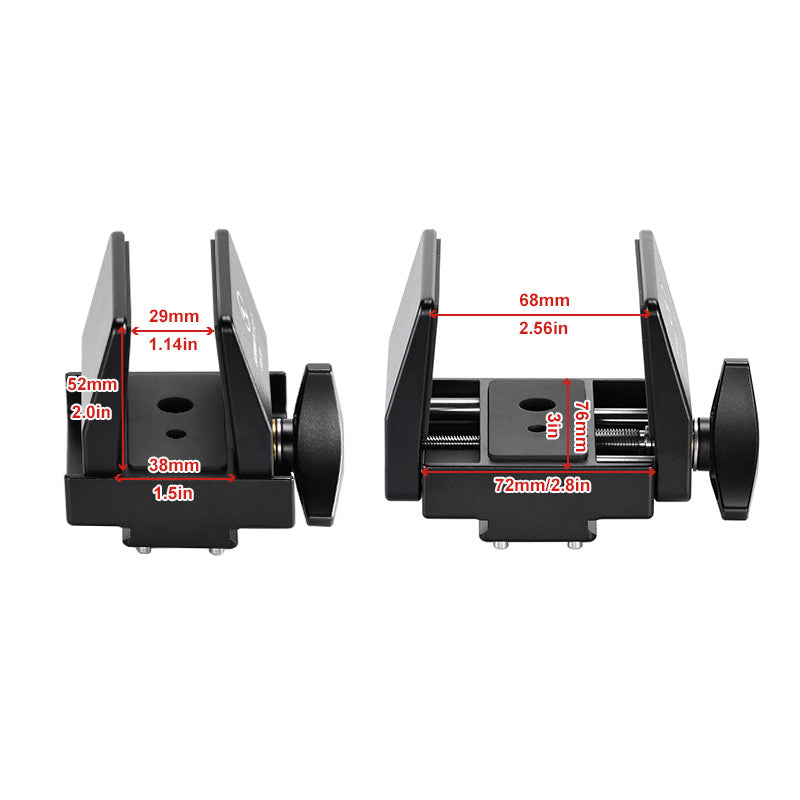

✪ Lightweight design, weighing only 16.2oz(460g).3.62*3.23*3.27 inch(92*82*83mm), compatible with equipment width between 1.14inch (29mm) and 2.68inch (68mm) .
Equipment support mount SM-76
Model: SM-76
Length：92mm/3.62in
Width：82mm/3.23in
Height：83mm/3.27in
Clamping Range：29~68mm/1.14in~2.68in
Weight：525g/19oz
