Description

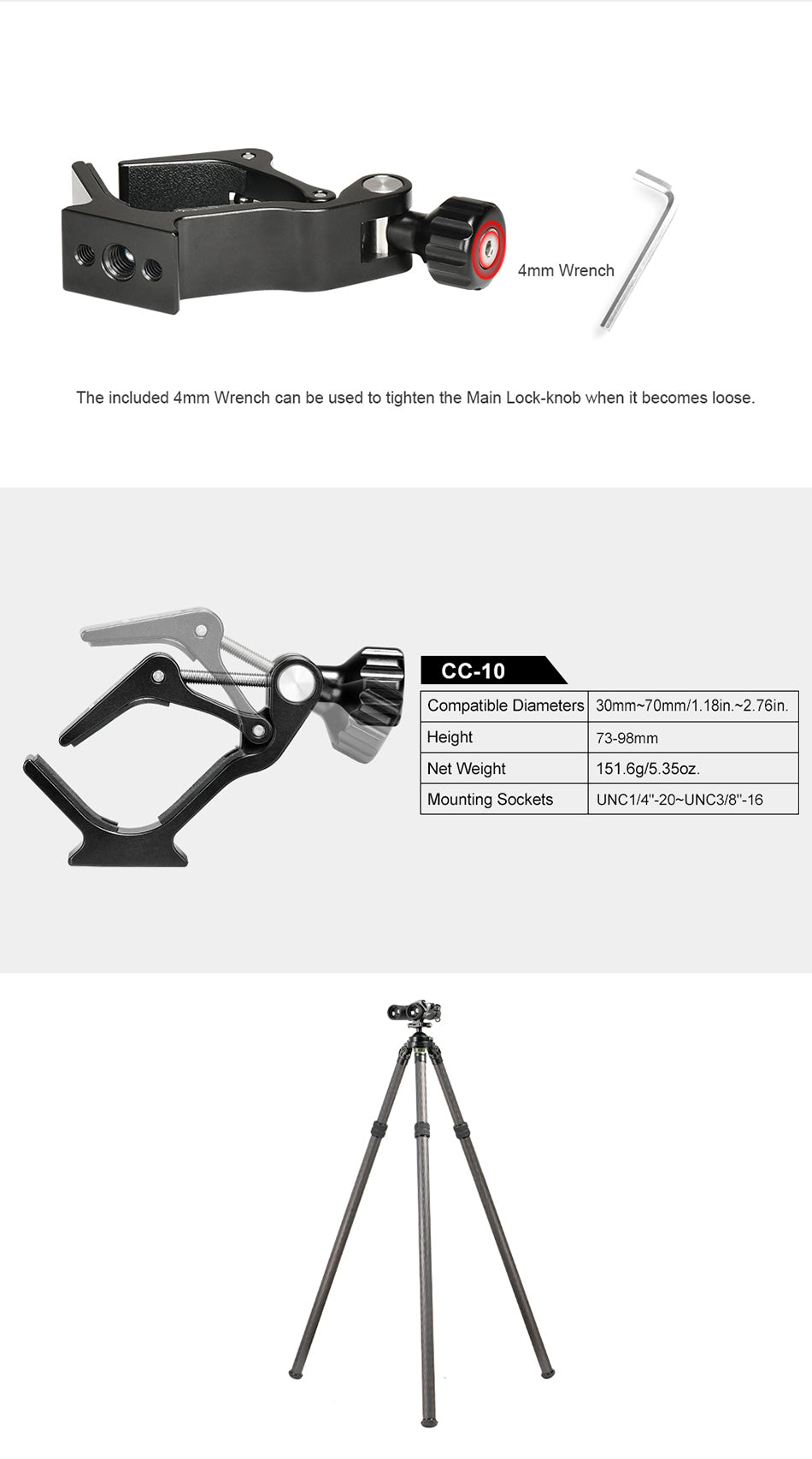

Material：Aluminum
Compatible Diameters：30mm~70mm/1.18in.~2.76in.
Height：73~98mm
Weight：151g/5.35oz.
Mounting Sockets：UNC 1/4”-20、UNC 3/8”-16

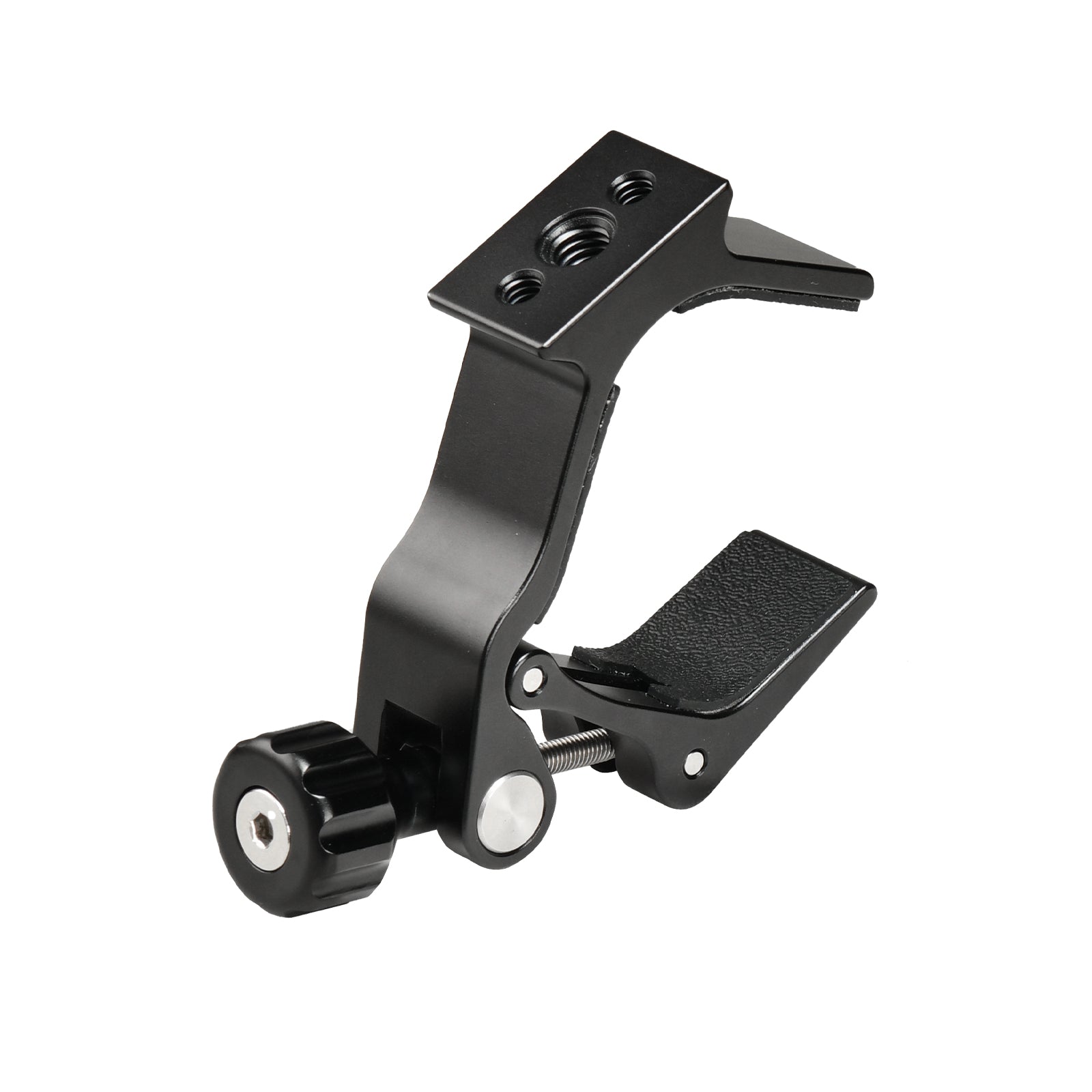

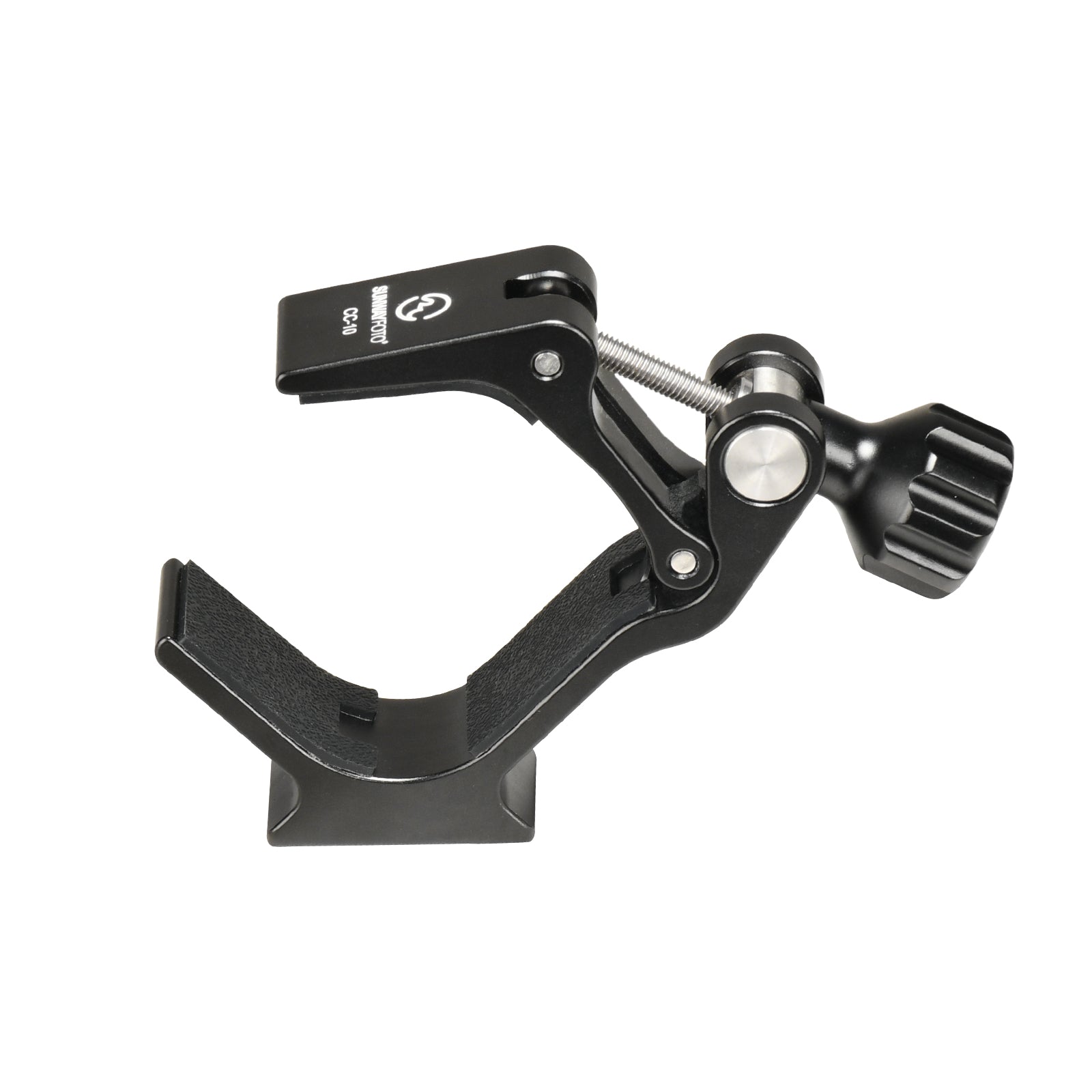

This binocular clamp boasts excellent lightweight and portability features, weighing only 5.35 ounces (151 grams).
The main body is made of T6061 aviation-grade aluminum alloy. While ensuring an ultra-light weight, it demonstrates extremely high structural strength and durability. Through the hard anodizing surface treatment process, its wear resistance and corrosion resistance are significantly enhanced, allowing it to easily handle various harsh usage environments.
The force-bearing screw is made of 304 stainless steel. With its outstanding corrosion resistance and high tensile strength, it provides a stable and reliable clamping effect for binoculars, effectively ensuring the stability during the observation process.

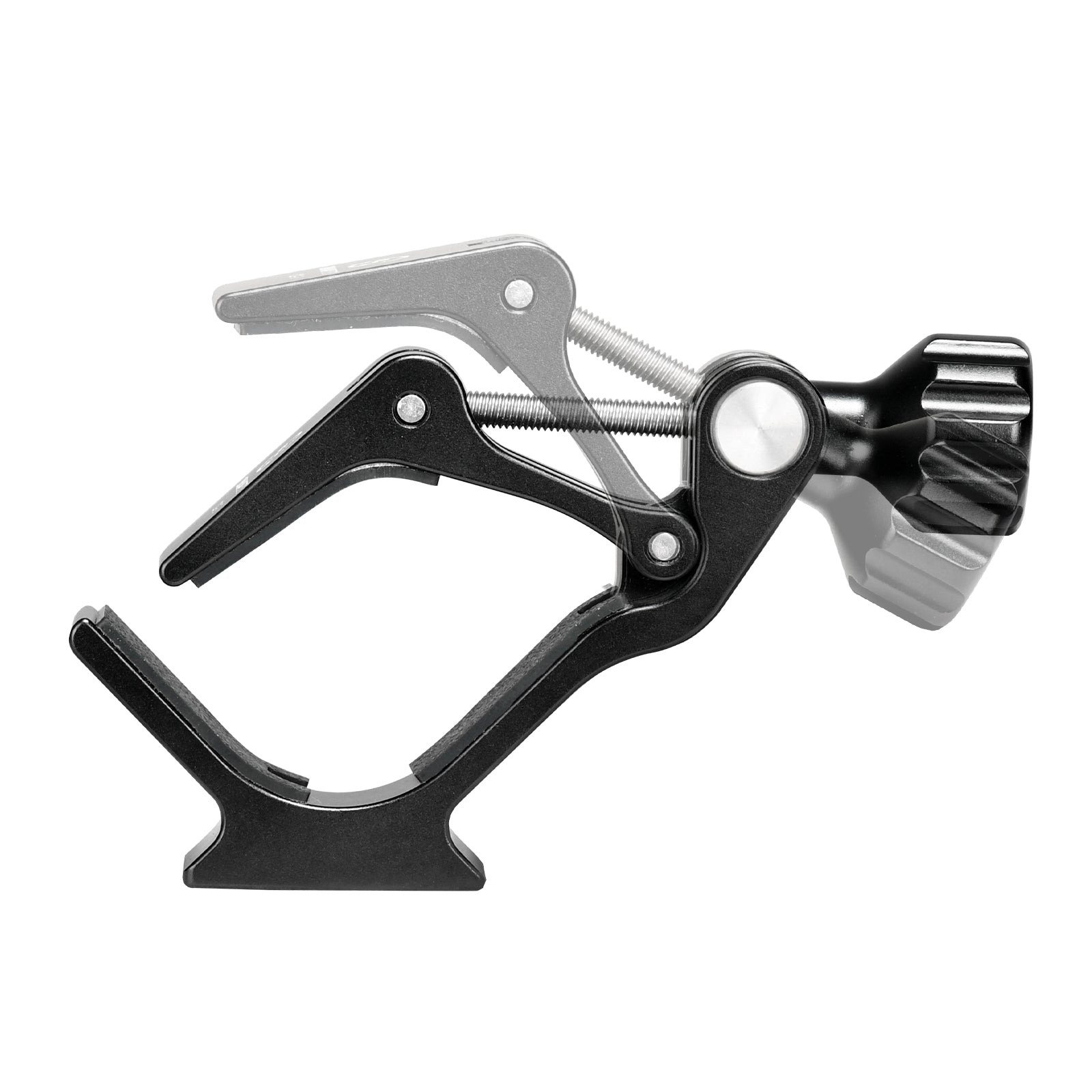

This binocular clamp adopts a fixed clamping method for one side of the barrel, and is suitable for binoculars with a diameter ranging from 1.2 to 2.8 inches (30 to 70 millimeters), and can be adapted to large binoculars of specifications such as 15×56.

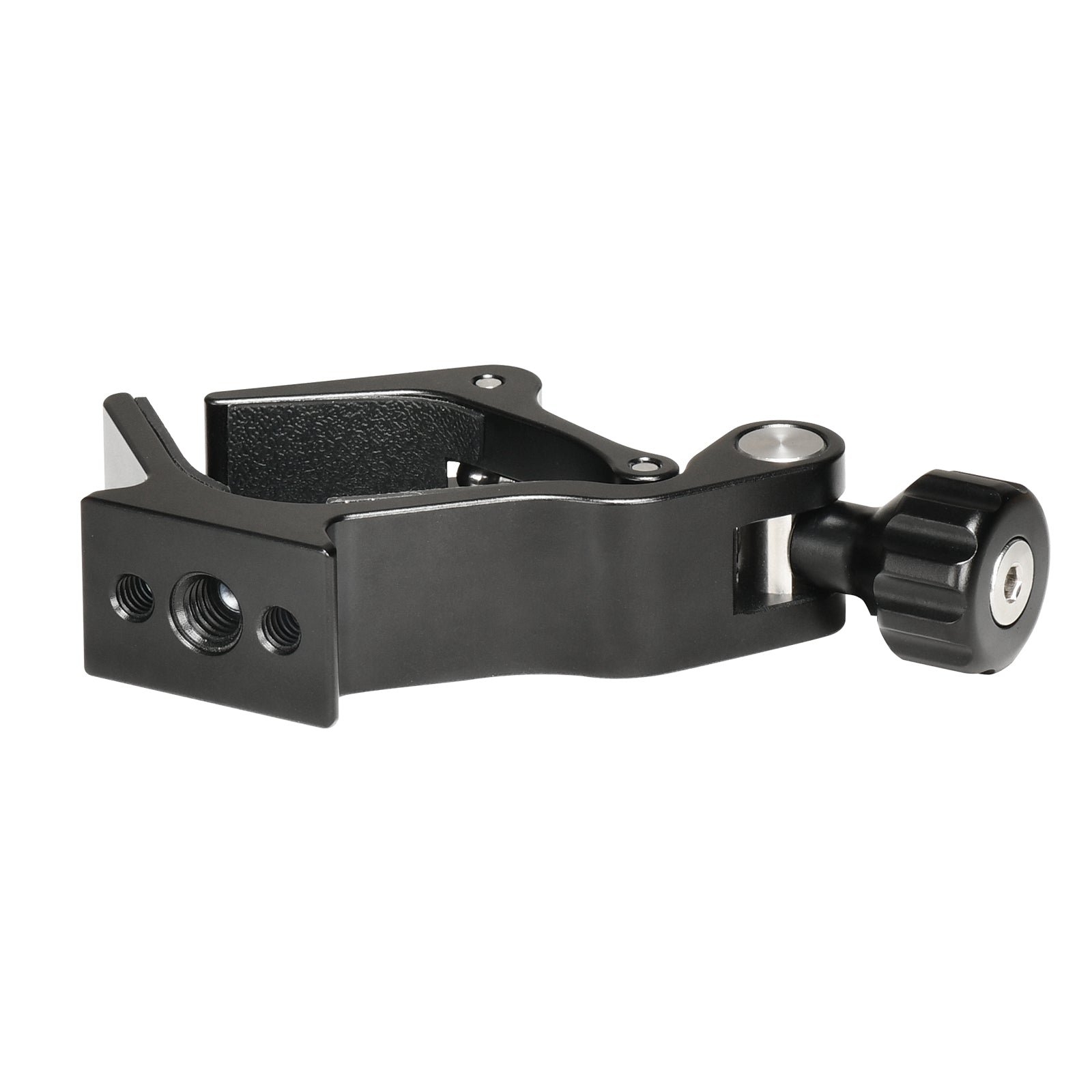

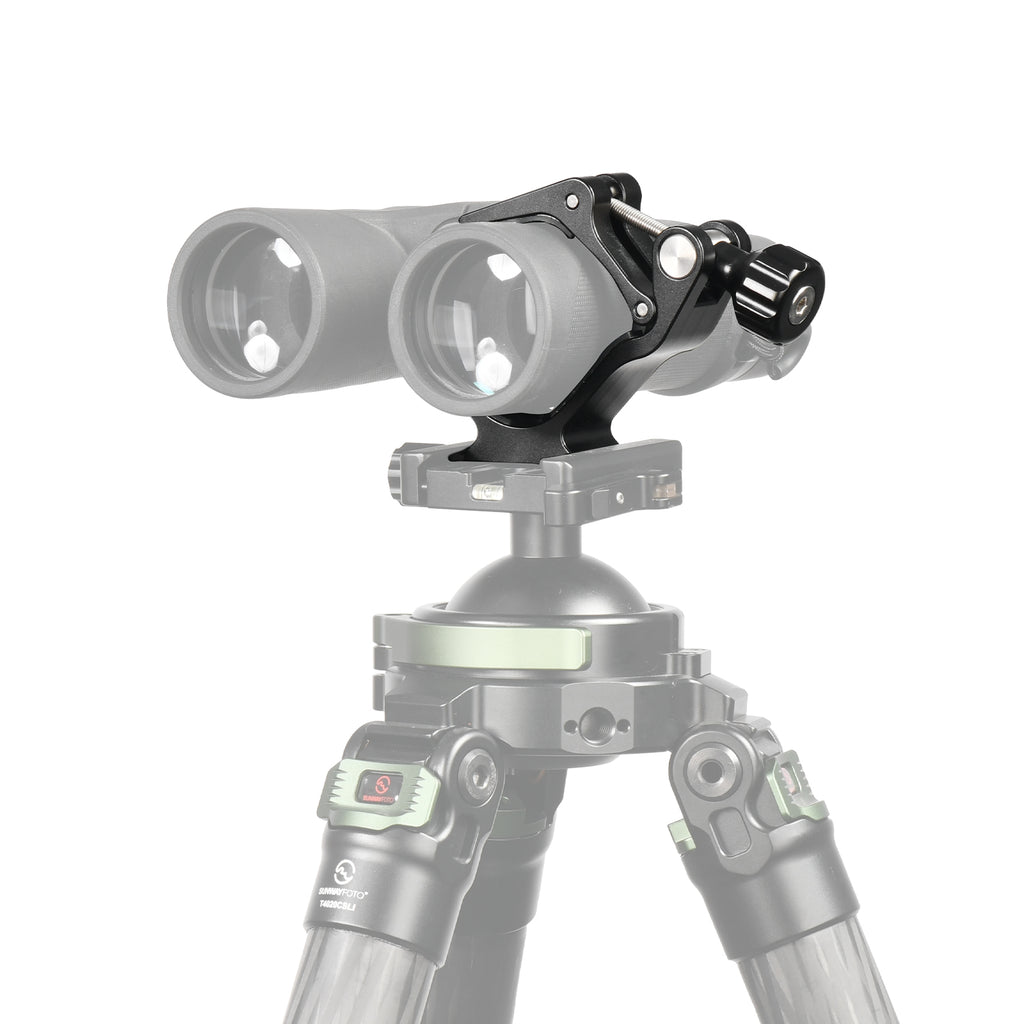

The bottom is equipped with a standard ARCA-SWISS dovetail groove interface, which supports quick and precise installation with tripods of the same specification, greatly improving the operational convenience. At the same time, two standard threaded holes of 1/4-20 and 3/8-16 are reserved at the bottom, which are compatible with the vast majority of conventional tripods on the market, significantly expanding the application scenarios and adaptability range of the product.
