Description
Gimbal Head GH-04
Model: GH-04
Length：212mm
Height：253mm
Base Diameter：60mm
Clamp Width：60mm
Vertical Adjustment Range：110mm
Net Weight：1060g
Load Capacity：30KG
Base Screw Thread：UNC3/8"-16

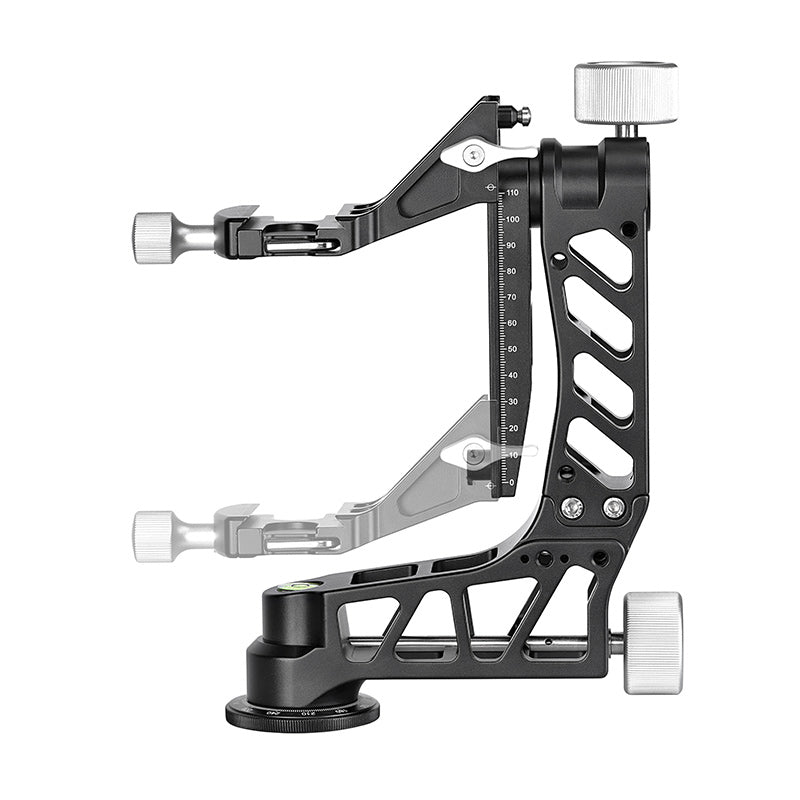

✪GH-04 Gimbal Head is elaborately CNC machined from T6061 aerospace grade aluminum material, with type-III hard anodized finish and feature hollowed-out design ensuring it’s light, strong and durable.

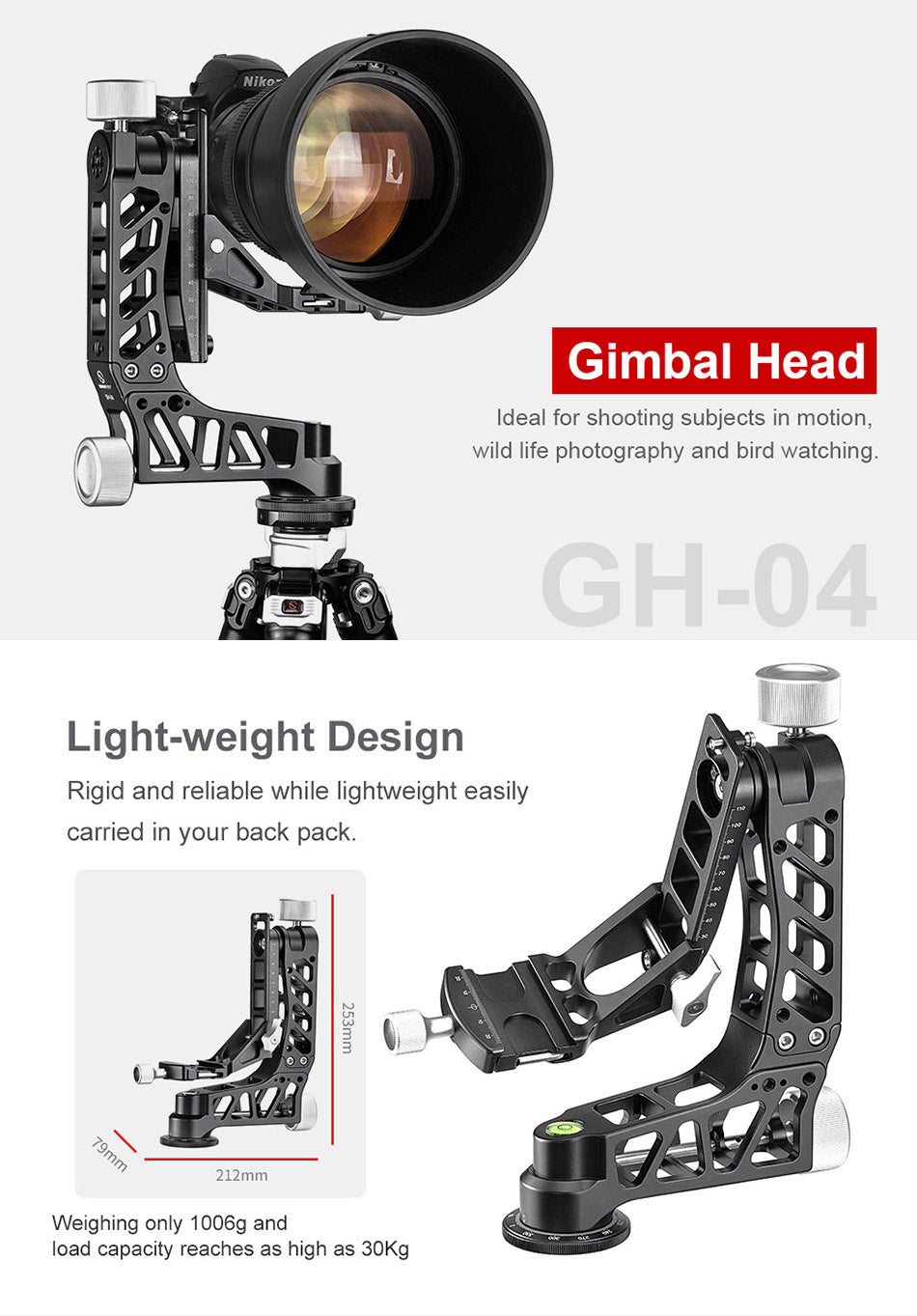

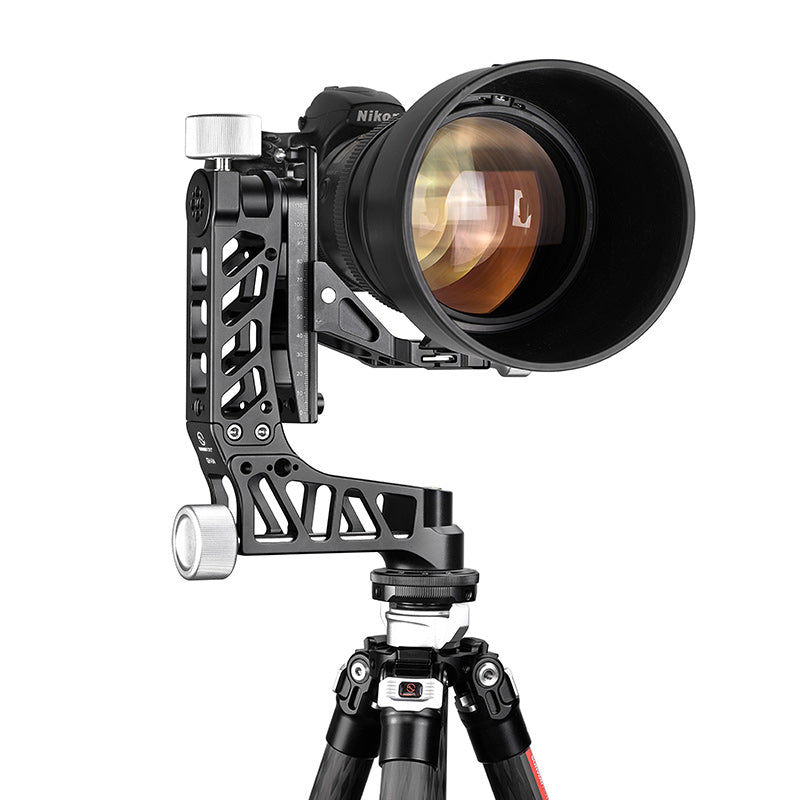

✪GH-04 universal adjustment head is suitable for telephoto lenses, allows you to track your subject in all directions effortlessly, eliminating the weight of your heavy lenses. Ideal for shooting subjects in motion, wild life photography and bird watching.
✪8.3*3.1*10.0inch(21*7.8*25.3cm), hollowed-out design, weighing only 2.3lb(1060g.) and load capacity reaches as high as 66lb(30Kgs). Rigid and reliable while lightweight easily carried in your back pack.

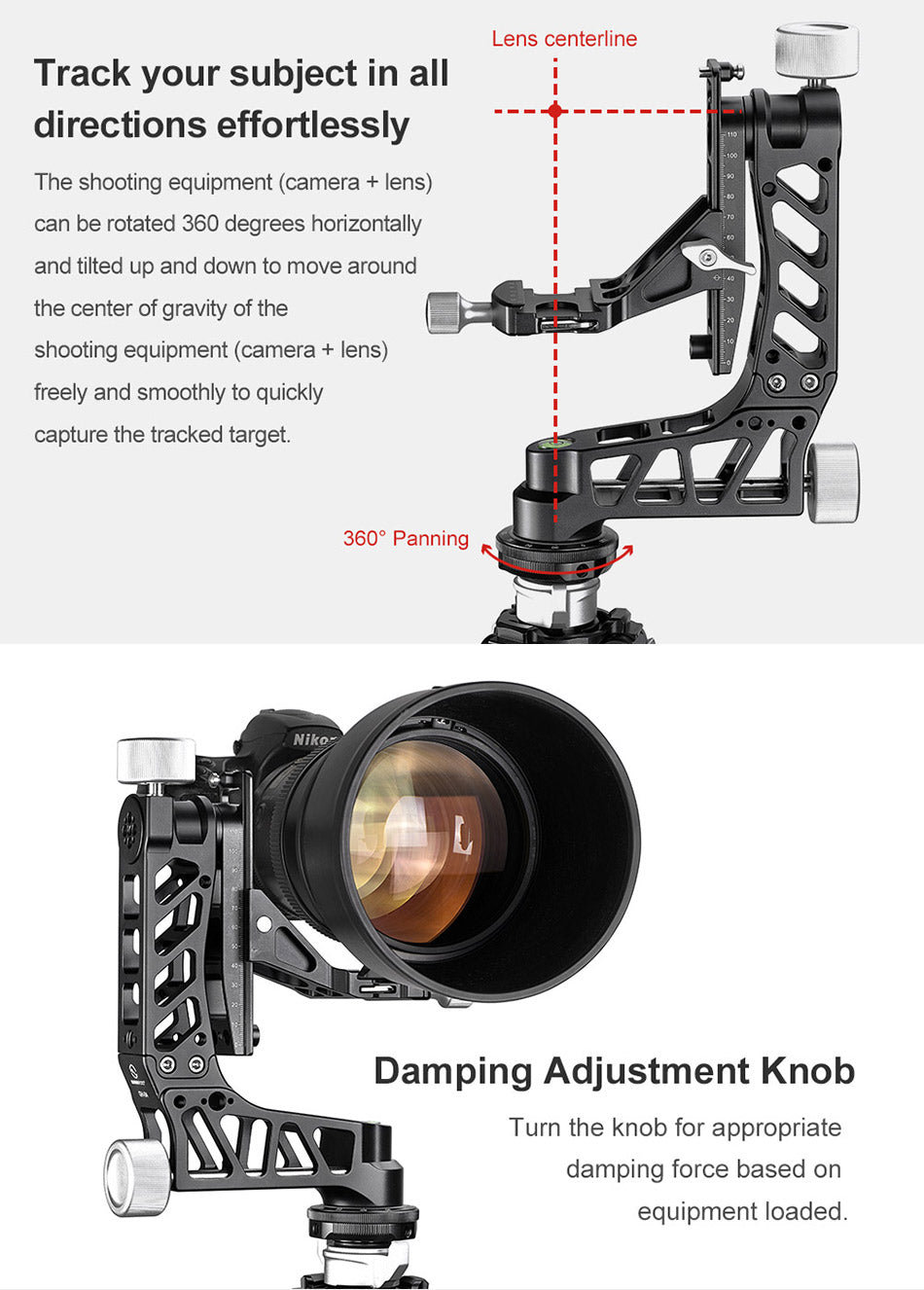

✪The shooting equipment (camera + lens) can be rotated 360 degrees horizontally and tilted up and down to move around the center of gravity of the shooting equipment (camera + lens) freely and smoothly to quickly capture the tracked target. Exquisite workmanship makes the pan/tilt have no noise when it is moving, which ensures the shooting target will not be alarmed.
✪When the shooting equipment balanced, it can be fixed at any tilt position directly, no need to rely on the lock-knob. Adjust the Damping Adjustment Knob according to weight of the loaded equipment for appropriate damping force.
✪4.3inch(11cm) vertical adjustment range allows adjustment of the cradle to balance almost any size of lenses.
✪Extra large panning base with a diameter of 2.36inhc(60mm）and reinforced 3/8” threaded socket at the base making it compatible with most tripods available in the market and provides steady whole setup to absorb vibration.
✪Innovative safety system provides highest protection to camera body and telephoto lenses: 1. Twist the safety lock lever to Safety Pin, effectively avoids accidental dropping of the shooting equipment from extreme angle due to weight. 2. Twist the safety lock lever to Tilt Lock, immobilizes the vertical adjustment gliding plate to avoid impacts to your shooting equipment.

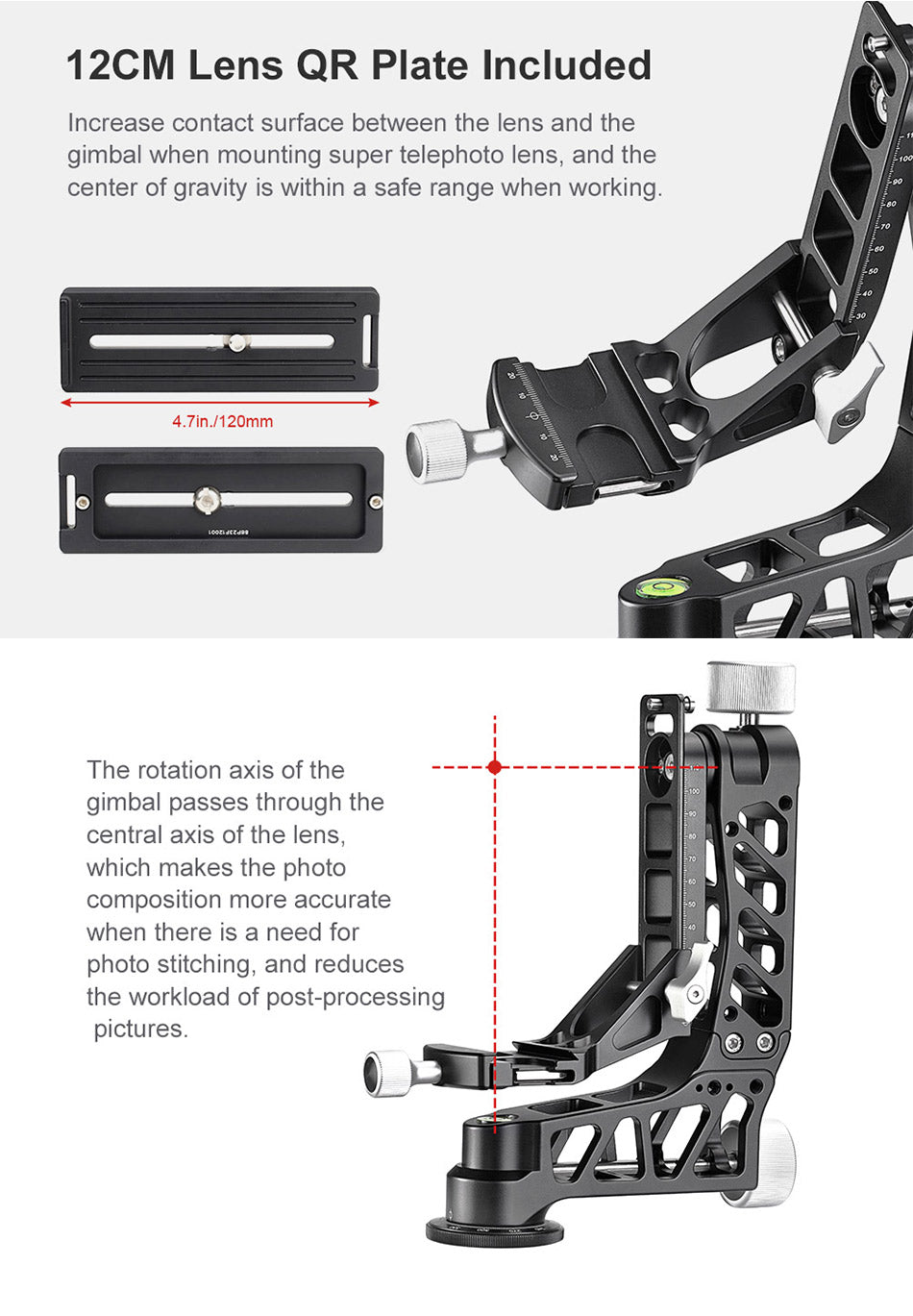

✪4.72inch(12cm) Lens QR plate included, which increases contact surface between the lens and the gimbal when mounting super telephoto lens, and the center of gravity is within a safe range when working.
✪The rotation axis of the gimbal passes through the central axis of the lens, which makes the photo composition more accurate when there is a need for photo stitching, and reduces the workload of post-processing pictures.

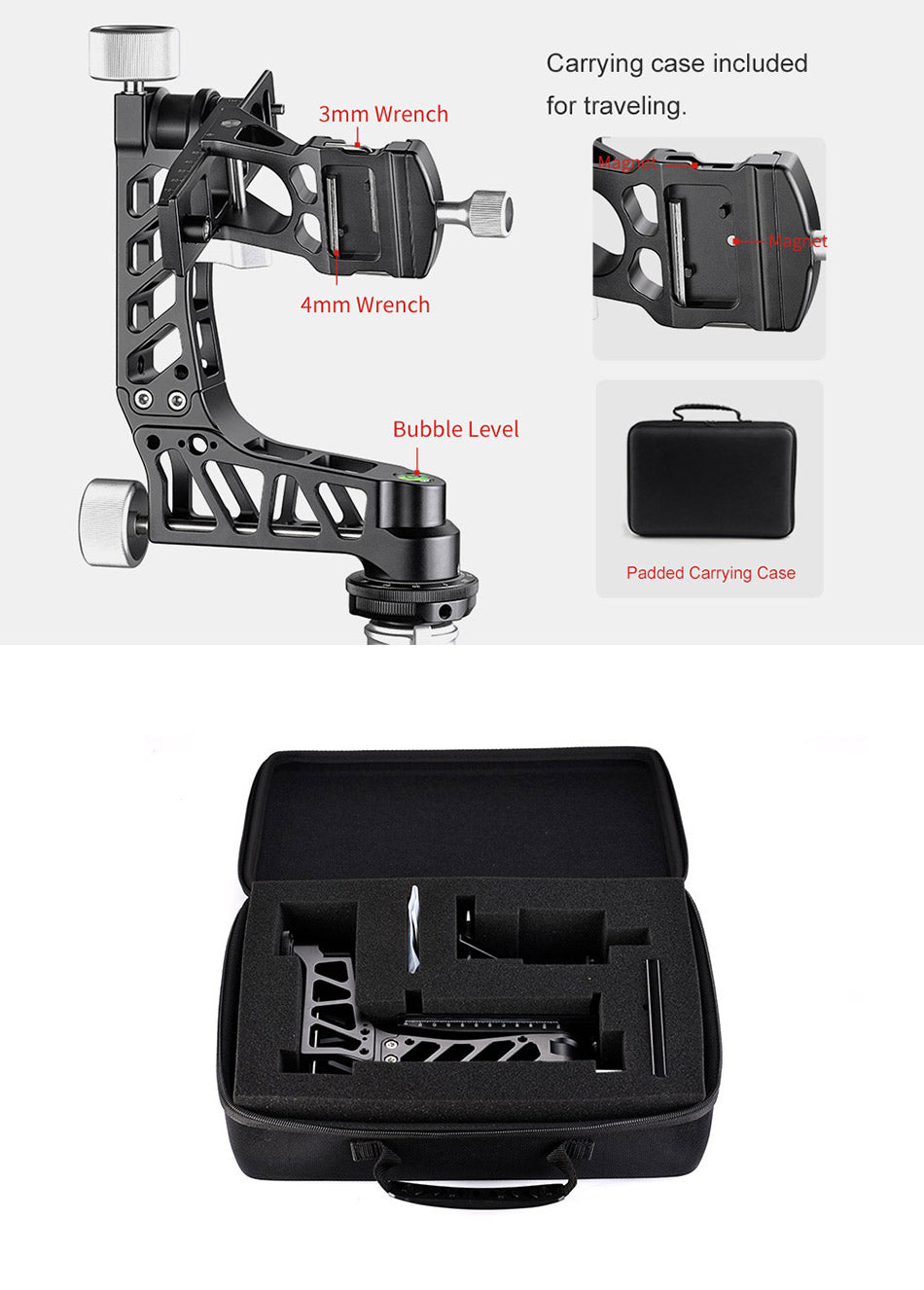

✪Carrying case included for travel.
