Description

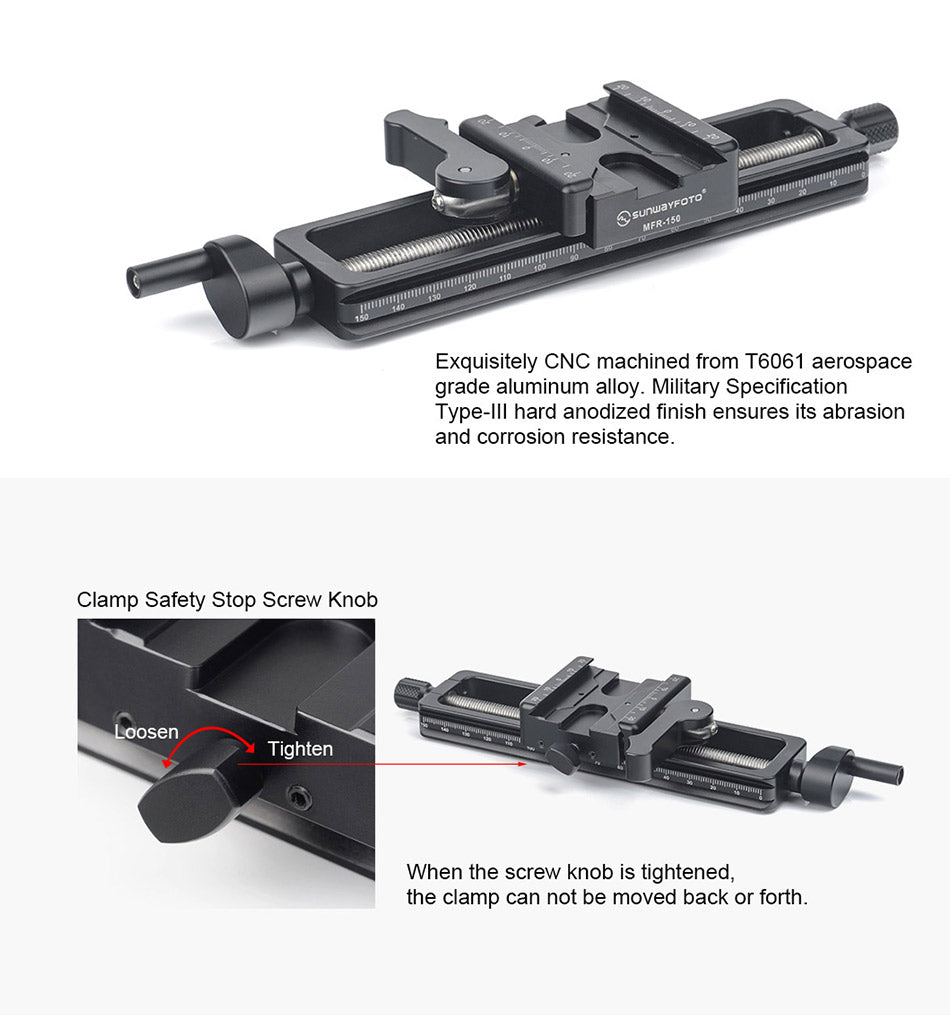

✪Exquisitely CNC machined from T6061 aerospace grade aluminum alloy. Military Specification Type-ll hard anodized finish ensures its abrasion and corrosion resistance.
✪Model: MFR-150

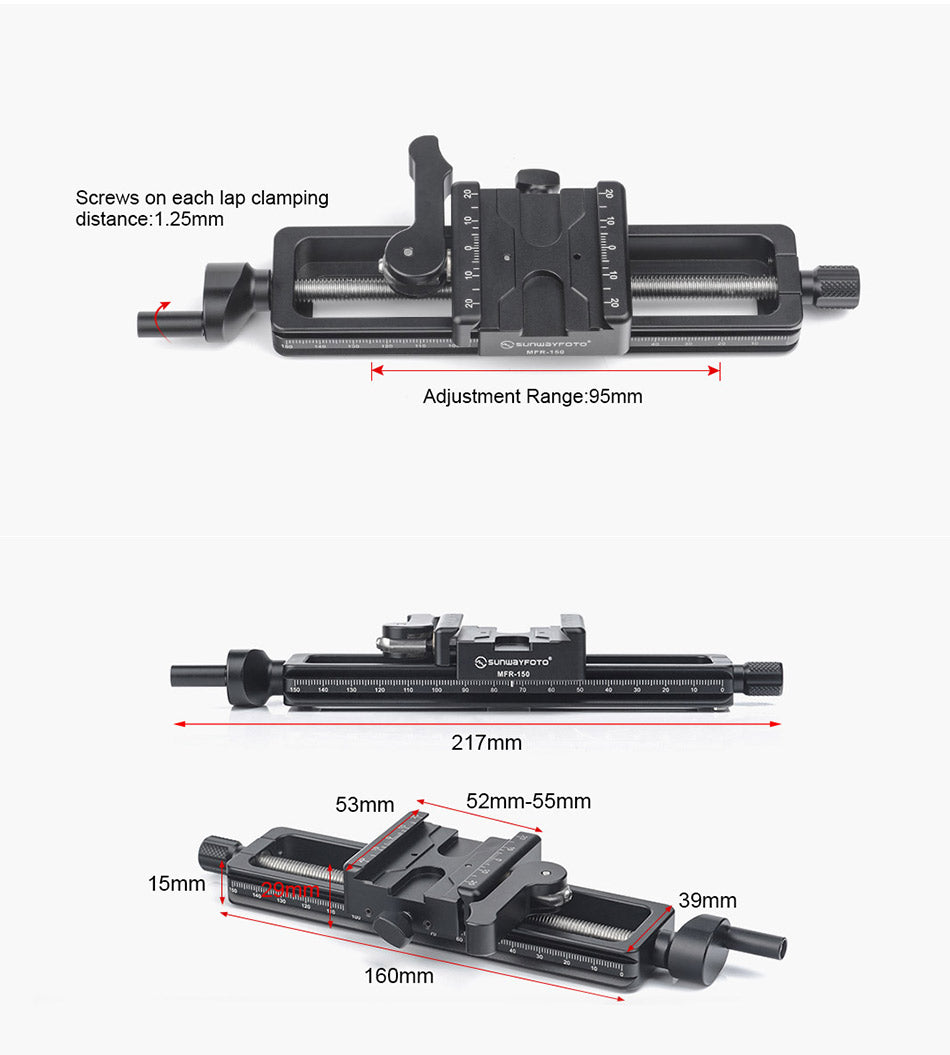

Length:217mm
Width:53mm
Thickness:29mm
Net Weight:272g
Clamp Type:Lever-Release
Max load：7kg (varies with angle of load)
Width:53mm
Thickness:29mm
Net Weight:272g
Clamp Type:Lever-Release
Max load：7kg (varies with angle of load)

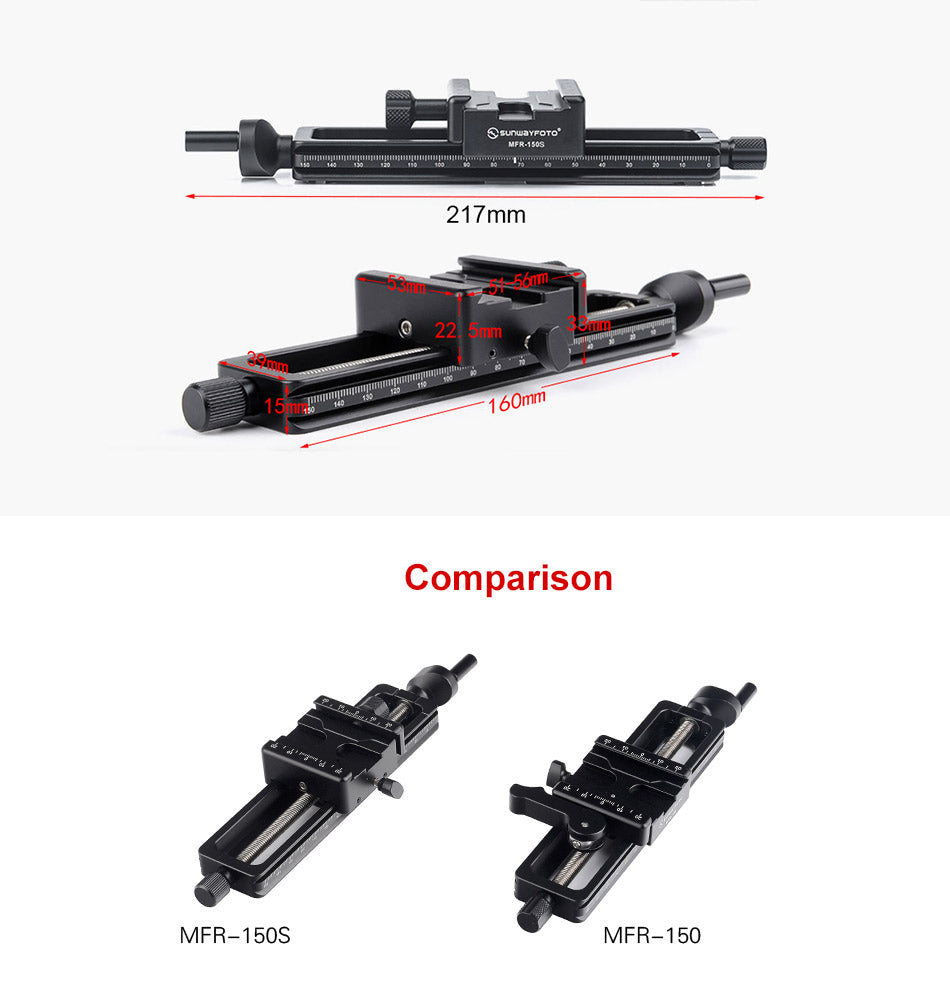

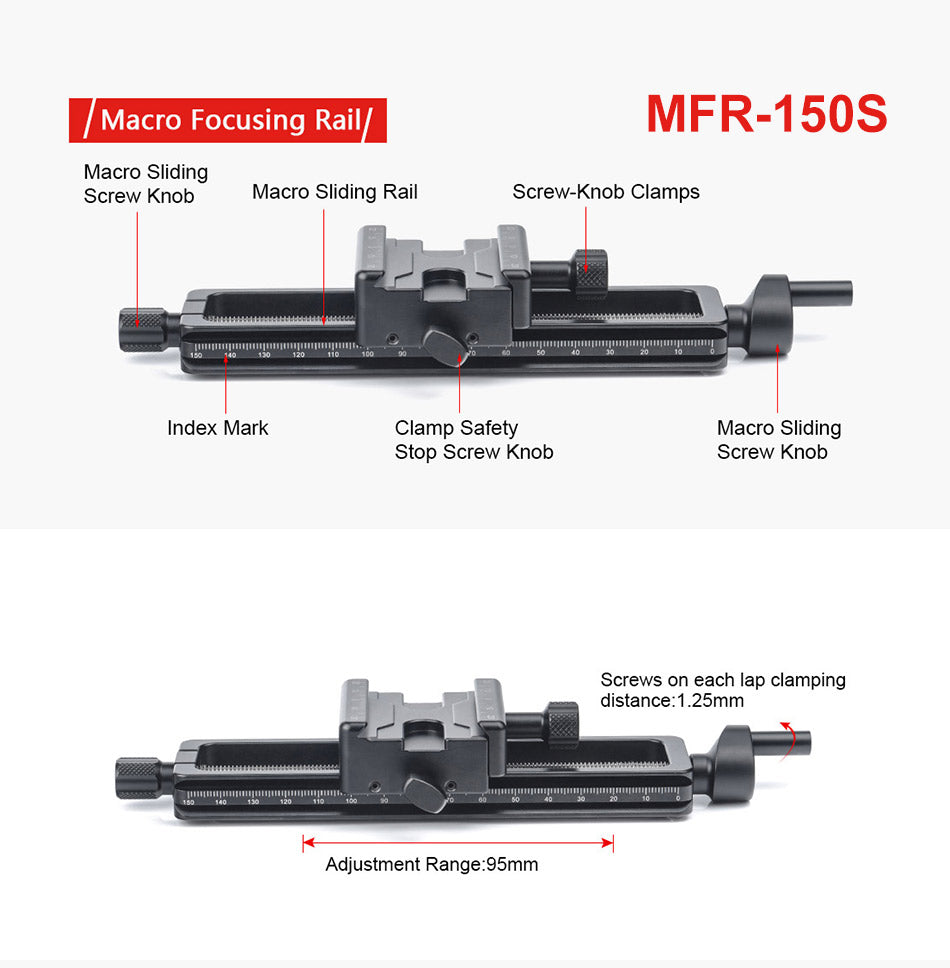

✪Model: MFR-150S
Length:217mm
Width:53mm
Thickness:33mm
Net Weight:279g
Clamp Type:Screw-Knob
Max load：7kg (varies with angle of load)
Width:53mm
Thickness:33mm
Net Weight:279g
Clamp Type:Screw-Knob
Max load：7kg (varies with angle of load)

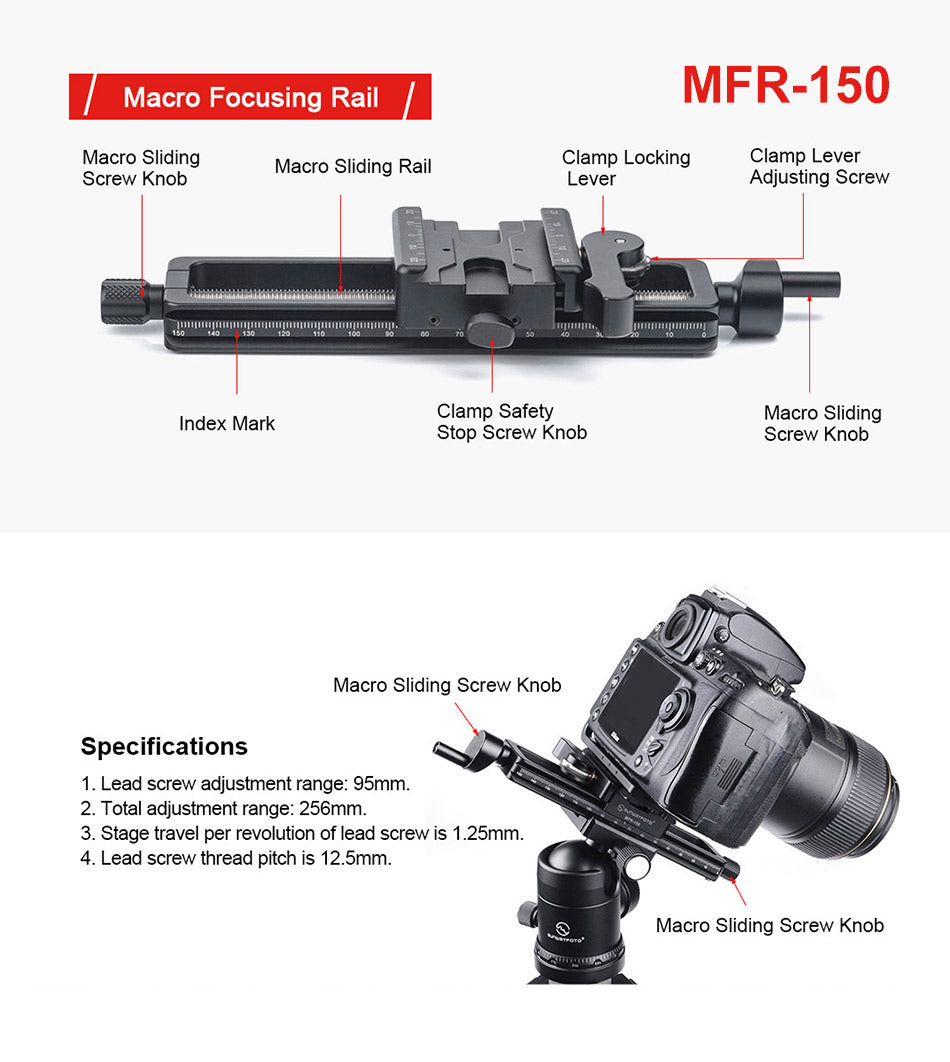

Specifications
1. Lead screw adjustment range: 95mm;
2. Total adjustment range: 256mm;
3. Stage travel per revolution of lead screw is 1.25mm;
4. Lead screw thread pitch is 1.25mm;
Using one MFR-150 for single-axis (fore-aft) precise adjustment.

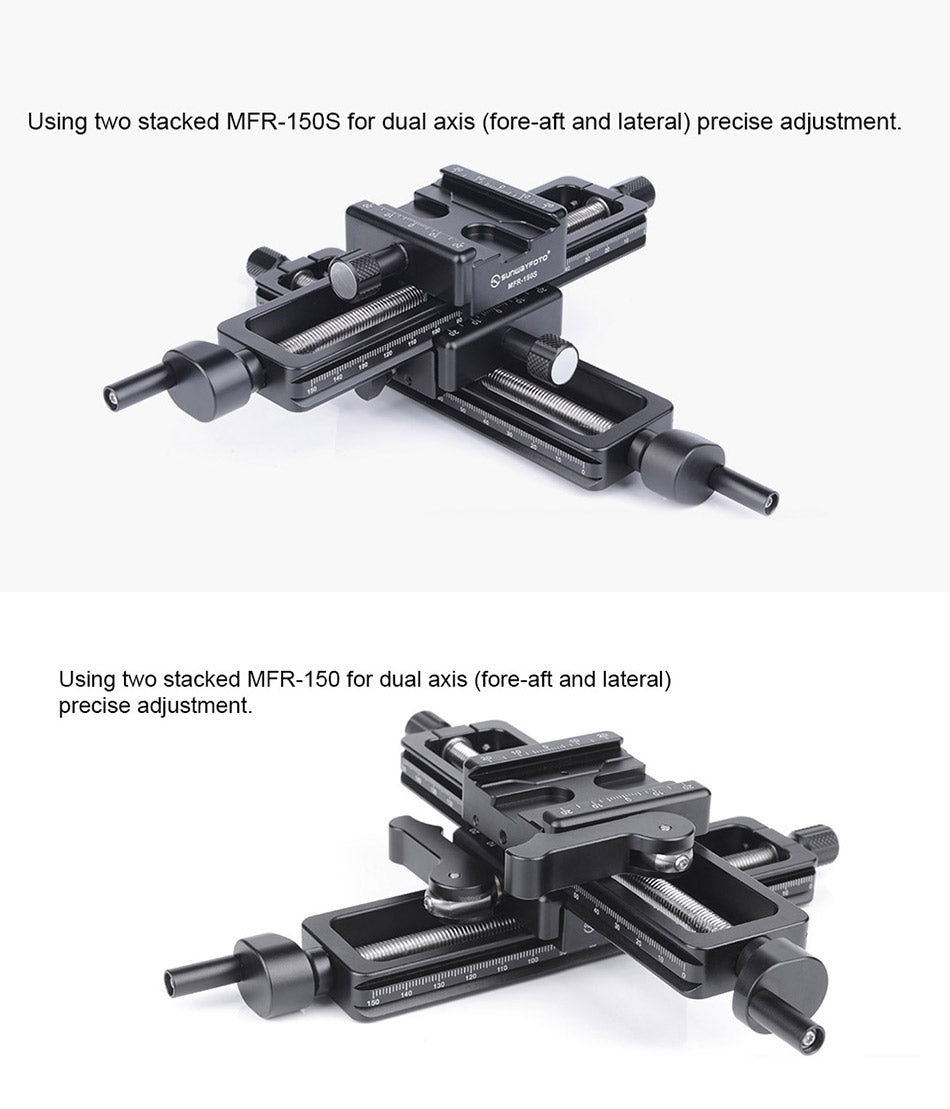

Using two stacked MFR-150 for dual axis (fore-aft and lateral) precise adjustment.

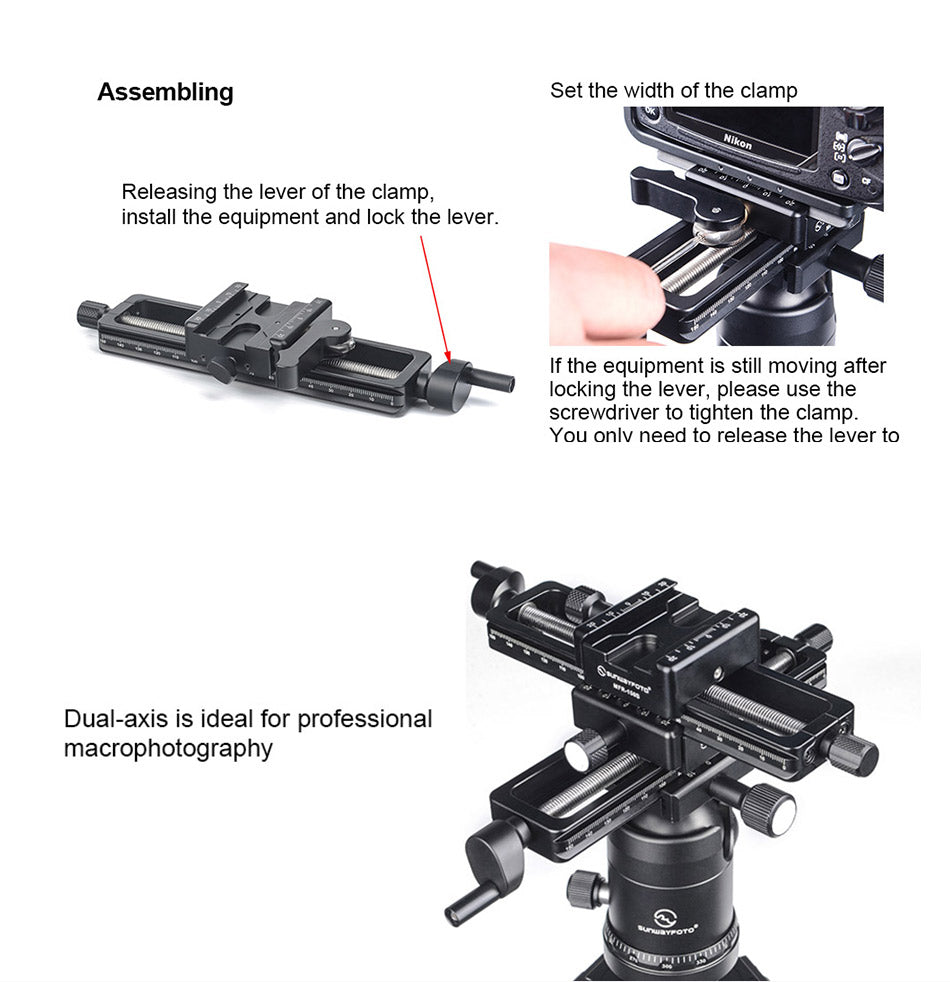

Dual-axis is ideal for professional macrophotography

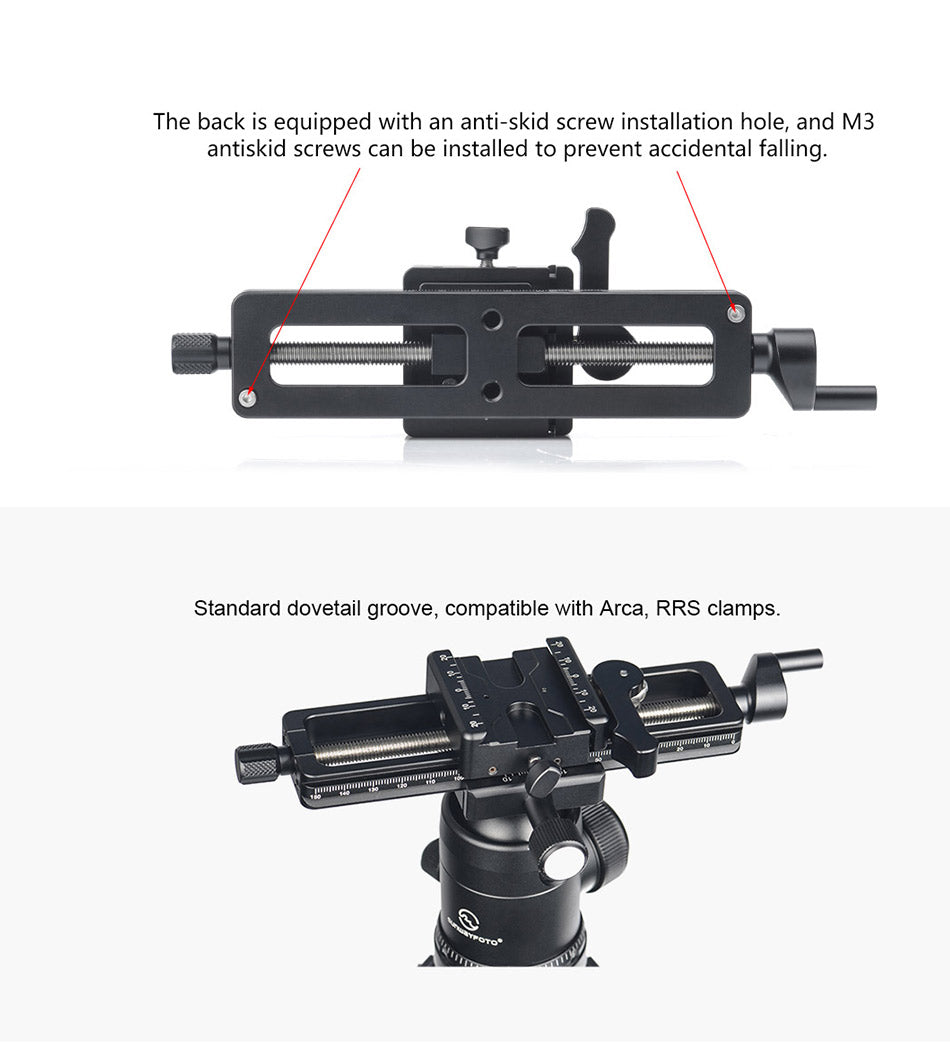

Standard dovetail groove, compatible with Arca, RRS clamps.
1. Lead screw adjustment range: 95mm;
2. Total adjustment range: 256mm;
3. Stage travel per revolution of lead screw is 1.25mm;
4. Lead screw thread pitch is 1.25mm;
Using one MFR-150 for single-axis (fore-aft) precise adjustment.
Using two stacked MFR-150 for dual axis (fore-aft and lateral) precise adjustment.
Dual-axis is ideal for professional macrophotography
Standard dovetail groove, compatible with Arca, RRS clamps.
