Description

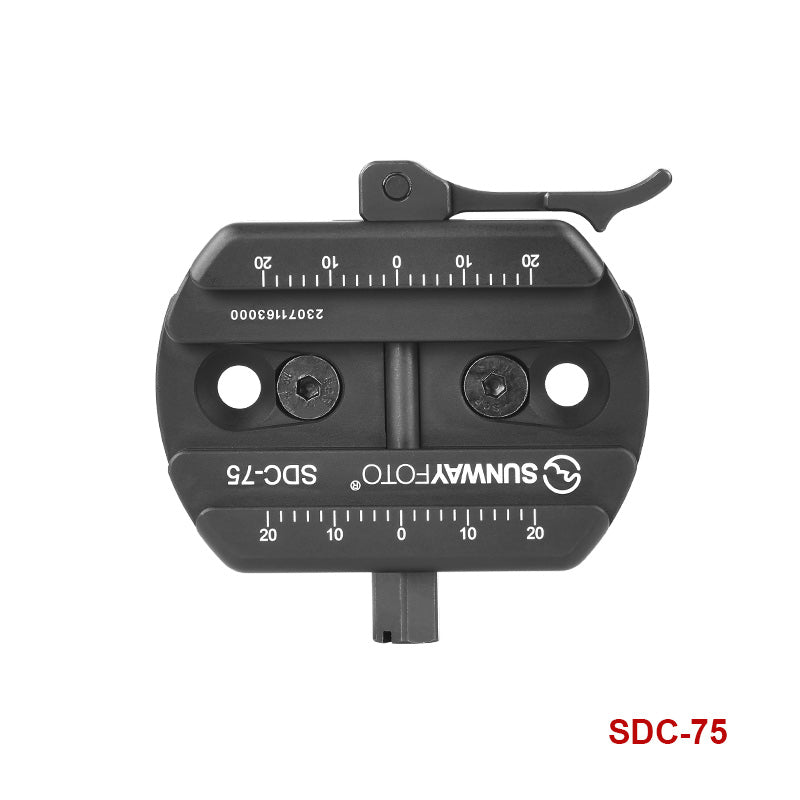

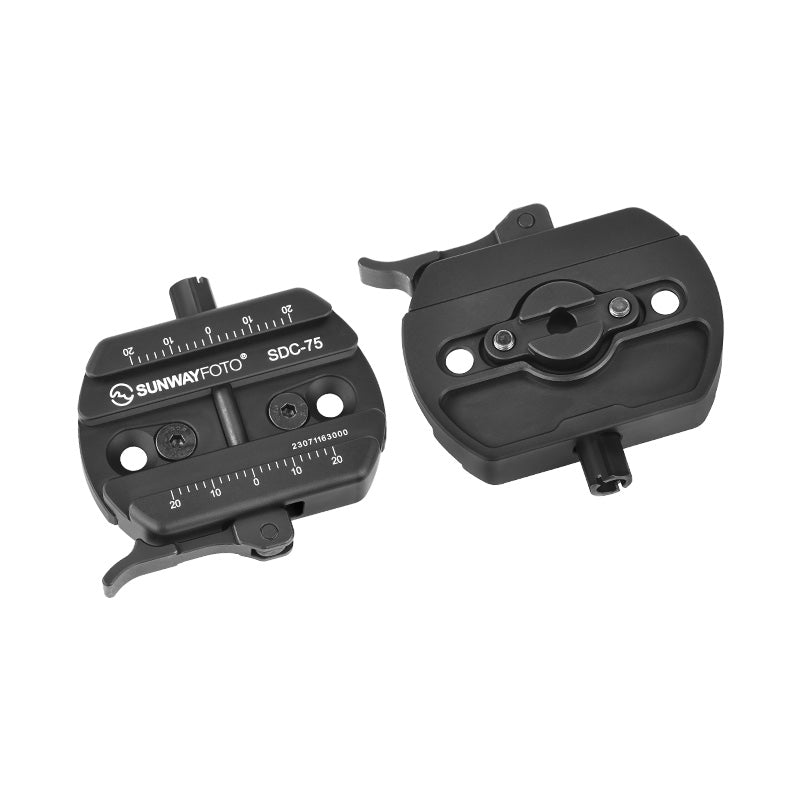

SDC-75 Arca Picatinny Clamp
Model: SDC-75
Length:75mm/3in
Width: 73mm/2.9in
Height : 23mm/0.9in
Net Weight :136g/4.8oz
T6061 grade aluminum main body, elaborately CNC machined with hard-anodized finish making it durable and resistant to abrasion and corrosion. Two way to lock, compatible with both Arca and Picatinny/Nato dovetail structure.
Both the screw-knob and lever-lock can be used for tightening, which also provides better compatibility of different QR plates as well as quick-locking.
Two groove standards: Arca and Pitcatinny/Nato dovetail structures
Clamp width can be fine tuned to work with different Arca QR plates.
Anti-slip block effectively avoids dropping of the loaded equipment under power shock.
Arca mounting socket at the base of the clamp so it works with different tripods heads.

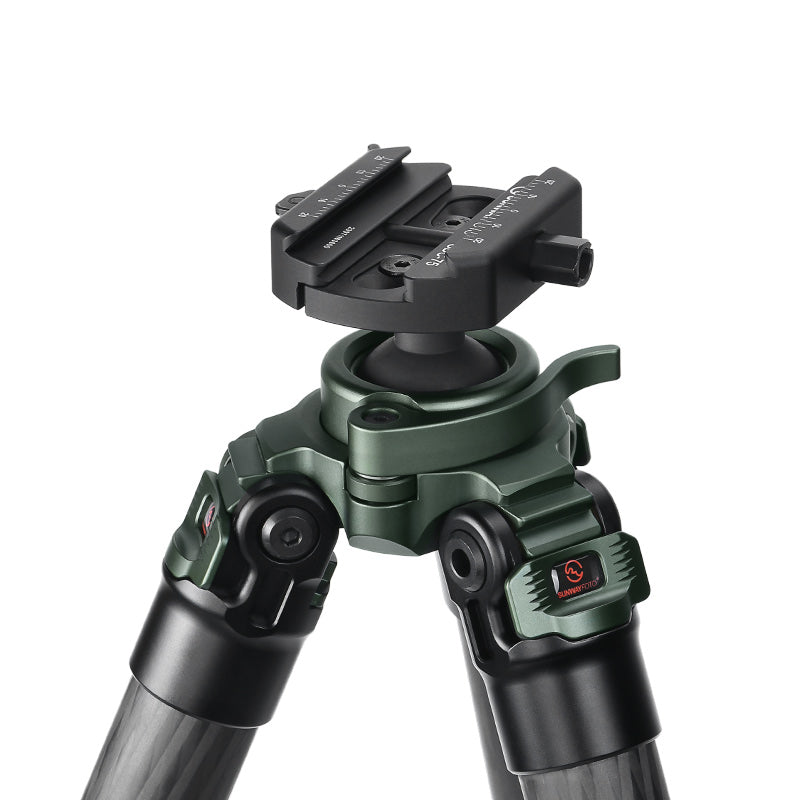

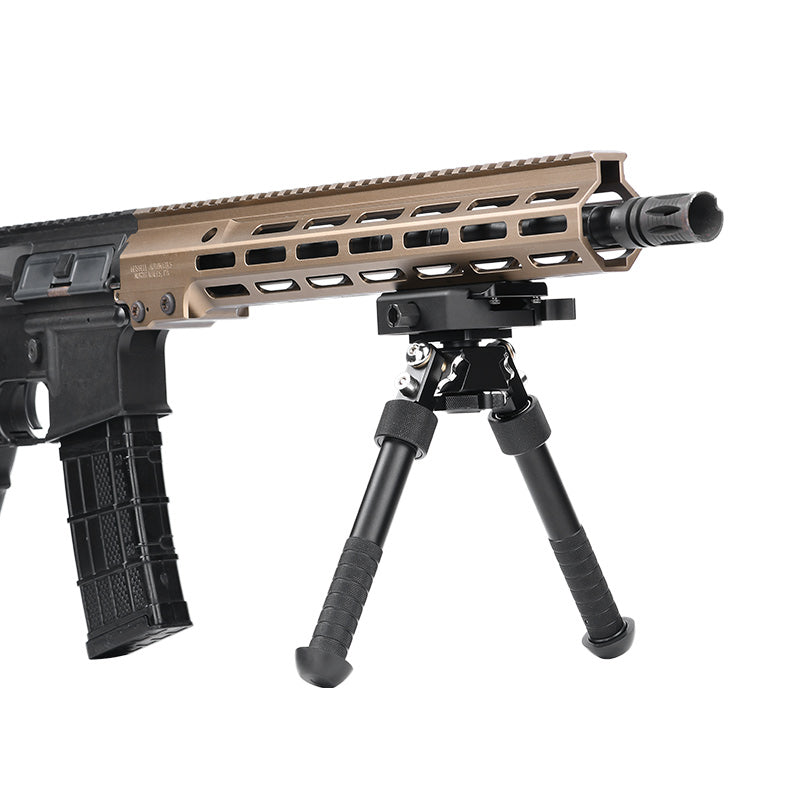

Dual interfaces at the base, work with both Arca swiss tripods and 17S Bipods.

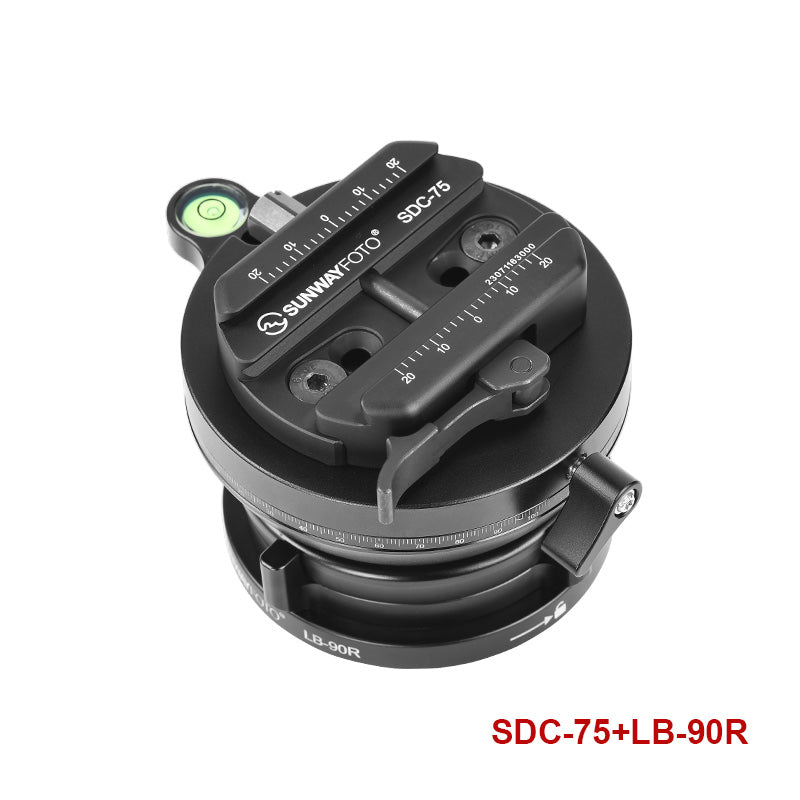

Match with the LB-90R, the SDC-75 enables the leveling base LB-90R to be compatible with Arca Swiss QR plates and Picatinny rails.
